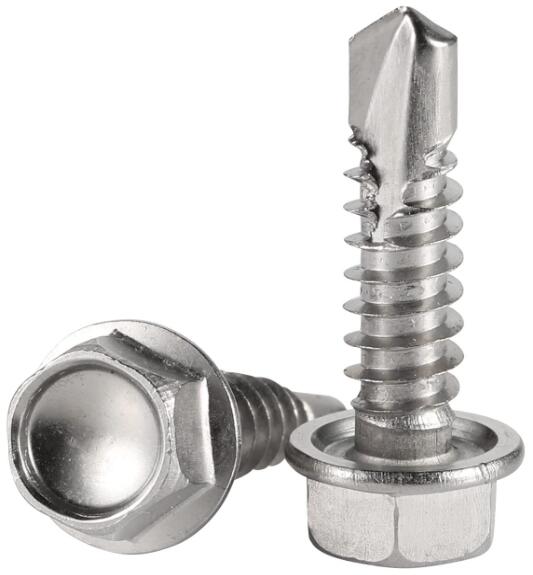

Hex Washer Head Self Drilling Screws

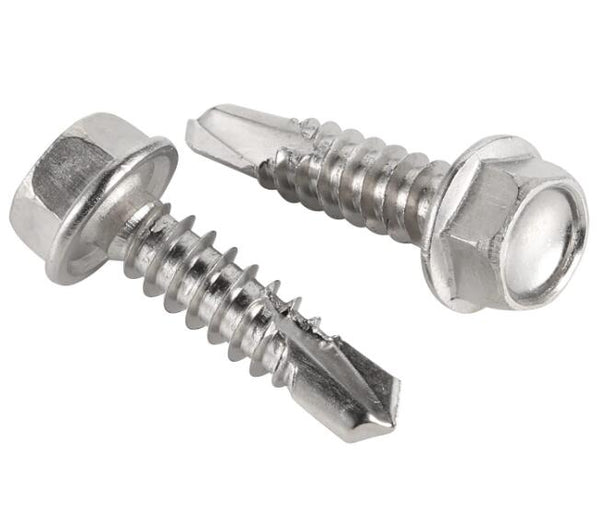

Hex Washer Head Self Drilling Screws 1

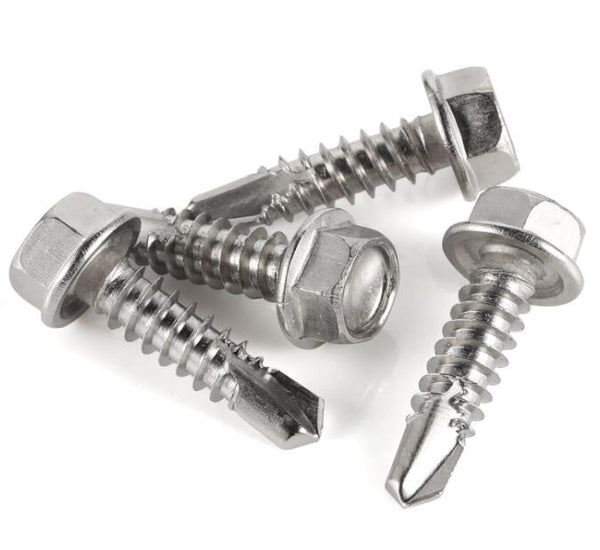

Hex Washer Head Self Drilling Screws 2

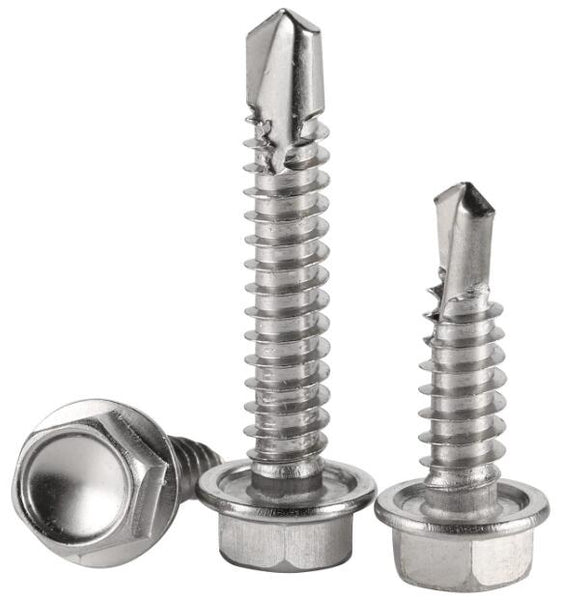

Hex Washer Head Self Drilling Screws 3

Hex Washer Head Self Drilling Screws

M3Tools
Tax included.

Secure Payments

Self-drilling screws are an important type of fastener for joining materials without requiring pre-drilled holes. Hex washer head self-drilling screws are a common variety that offer advantages over other styles. This review will cover what self-drilling screws are, the key features of hex washer head screws, their applications, and factors to consider when selecting the right screws for a job.

What are Self-Drilling Screws?

Self-drilling screws are fasteners designed to drill or tap their own holes as they are driven into a material. They have a specially hardened and shaped tip that allows them to cut threads directly into softer materials like wood, sheet metal, and plastic without pre-drilling. The primary advantage of self-drilling screws is the time and effort saved by eliminating pre-drilling holes. They are well-suited for applications where access is limited or hole alignment would be difficult.

Self-drilling screws are available in a variety of head styles for different uses cases. But they all share a few key design elements that enable self-drilling. At the tip is a drill point made of hardened steel or carbide that can penetrate materials as the screw is turned. Behind the drill point is a pilot point that centers and stabilizes the screw as hole formation begins. Spiral flutes cut grooves in the material to remove drilling debris. Along the shank are helical threads that tap into the newly formed hole, gripping tightly once fully set.

Hex Washer Head Screw Design

The hex washer head style is one of the most common self-drilling screw designs. It consists of a washer placed under the head to distribute pressure and prevent damage to softer materials as the screw is driven in. Here are some of the key attributes:

  • Hexagonal head - Provides six flat sides for tightening and loosening with a wrench or power drill/driver. Offers more torque than other head styles.
  • Underhead washer - Distributes pressure and prevents indentation or cracking in softer materials like wood or plastic.
  • Self-drilling tip - Hardened, tapered drill point penetrates material during installation.
  • Pilot and spiral flutes - Center the shaft and remove drilling debris from the hole.
  • Helical threads - Tap into the pre-drilled hole for a strong, lasting connection once fully set.
  • Corrosion resistant finishes - Commonly passivated, coated, or made from stainless steel for outdoor or harsh environments.
  • Wide thread pitch - Allows faster drilling and setting compared to finer thread designs.

Applications for Hex Washer Head Screws

With their ability to drill strong, quick fastenings, hex washer head self-drilling screws have many construction and industrial applications:

  • Installation of siding, trim, fascia, and other exterior building materials where pre-drilling is impractical.
  • Joining wood deck boards and structural framing members during assembly.
  • Fastening metal roofing, siding, ductwork, equipment, and electrical enclosures where hole alignment matters.
  • Temporary or reusable fastening of signs, pallets, crates, staging/scaffolding during use.
  • Attachment of plastic, vinyl, or composite panels, trim, and enclosures on vehicles, boats, and RVs.
  • Assembling furniture, cabinets, and other wood/composite products on assembly lines.
  • Providing strong yet removable connections during prototyping, sampling, or testing of assembled products.

Factors to Consider When Selecting Hex Washer Head Screws

When choosing the right hex washer head self-drilling screws, there are a few key factors to consider related to the application and materials:

  • Screw length - Matches or exceeds thickness of all joined materials for full thread engagement.
  • Thread diameter/gauge - Larger screws provide more strength but may split thinner materials. Choose smallest screw that meets load requirements.
  • Point/thread type - Hardened for decking/wood or combination point for composite materials. Finer threads for delicate materials.
  • Drive style - Manual, cordless drill compatible, or anti-cam-out designs for power tools.
  • Finish - Passivated, coated, or stainless for corrosion resistance in exterior or harsh indoor environments.
  • Washer/head style - Low-profile washer required for tight spaces. Cushioned washer for softer materials. Color-coded for identification.
  • Quantity/packaging - Bulk packs more economical for production uses. Assorted packs convenient for general repairs.
  • Certifications - Required for automotive, marine, aerospace, and other industry-specific applications.
  • Load rating - Ensure screw meets or exceeds shear and pull-out strength needed to withstand stresses.

Choosing screws that match the material thickness, tolerances, driving method, and anticipated stresses will ensure a job is completed efficiently and securely. Speaking to manufacturers or distributors is recommended for specialized applications.

In Summary

Hex washer head self-drilling screws offer time-saving installation simplicity for a wide variety of assembly, construction, and industrial applications. Their ability to drill precise holes and create strong threads makes them an excellent fastening choice where accessibility, alignment, or quick assembly is important. Proper selection based on material types, environments, and load requirements helps ensure projects hold together as intended. Their versatility makes hex washer head self-drilling screws a mainstay in job sites and manufacturing facilities around the world.
